Замена большого вентилятора радиатора
Время от времени выскакивали две ошибки:
— P1948 Control Module 2 for cooling fan, short circuit
— 13701888 Function restriction due to recieved Malfunction Value.
Логика появления ошибки была очень странной. Вентиляторы работали как надо, и 1 и 2 скорости. Мотор не перегревался.
И ошибки не выскакивали обычно.
Но иногда во время срабатывания вентилятора (если ехать медленно то слышно), от нажатия педали сцепления (или газа, точно не могу сказать) были щелчки реле под торпедой и появлялись эти ошибки. Когда показал машину диагносту, никак не могли поймать ошибку. Двигатель работал 2 часа вентиляторы молотили регулярно, но ошибки не было. Думаю, ну ок, может я докапываюсь уже, паранойю умерил, поехал домой. Доехал до дома, делаю диагностику и опять эта ошибка. ДАЧТОЖТАКОЕТОЕПТВОЮМАТЬ.
Судя по всему проблема может быть в блоке управления внутри большого вентилятора (он один на оба карлсона). Только большой умный, а маленький ведомый.
По каталогам они идут двух видов:
Temic, 1K0959455CQ -> 1K0959455FE
Siemens, 1K0959455DL -> 1K0959455FJ ->1K0959455FR ->1K0959455FQ ->1K0959455DT.
У меня оказался Siemens, но увидел только после снятия.
Заказал аналог, NRF, арт.47389. На оригинал ещё не заработал. После установки ещё не проверил, похолодало. При установке пришлось один разъем перепиновать (на малый вент питание). Остальное все подошло.
Также залил в бак присадку G001770A2 для профилактики(лью 2-3 раза в год), которую рекомендует изготовитель.

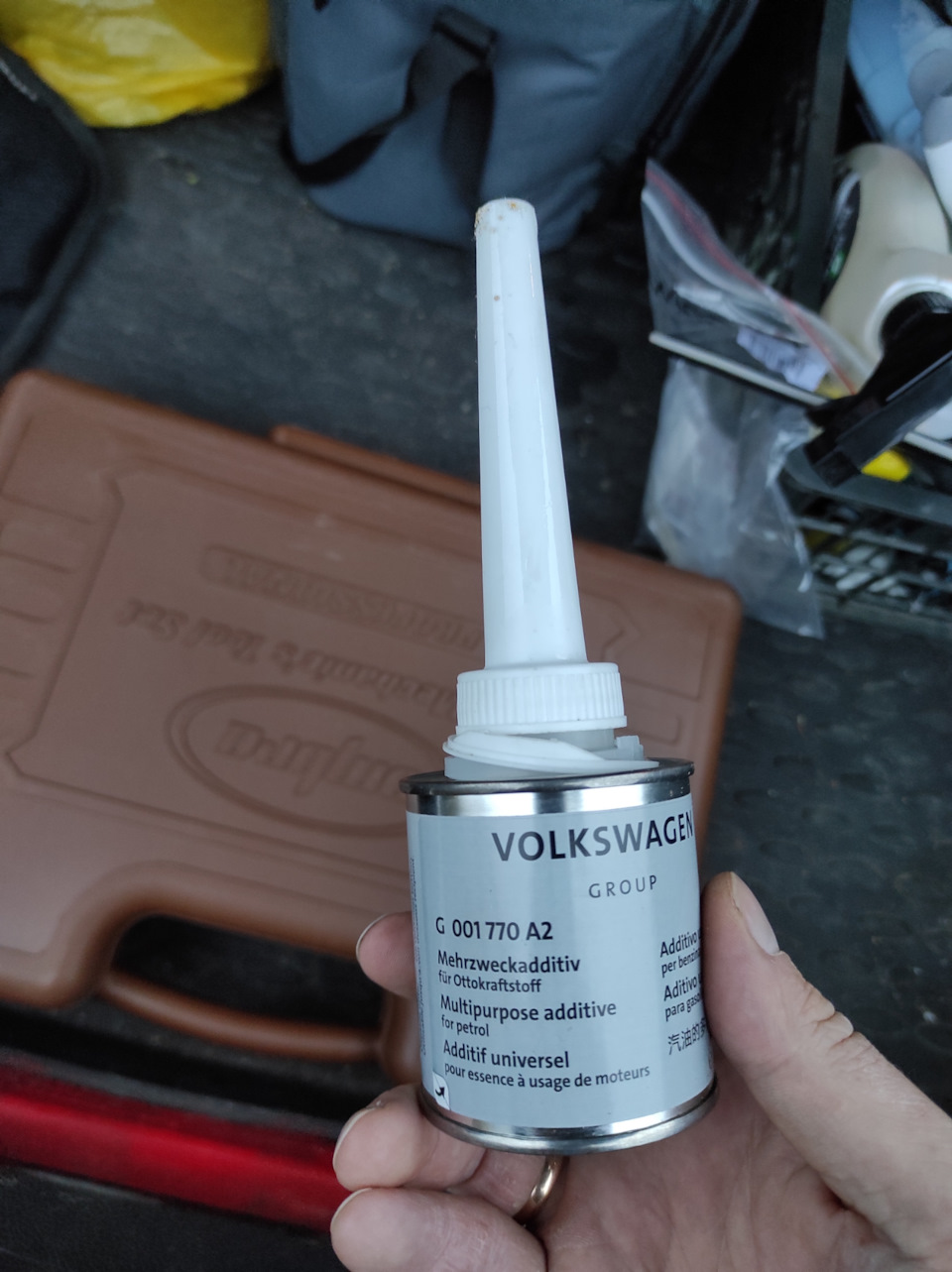

Запчасти на фото: G001770A2
Цена вопроса: 10 800 ₽
Пробег: 191 000 км
